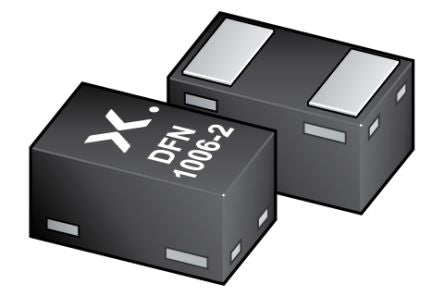

Nexperia PESD5V0X1BCAL,315, Dual Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882 [PESD5V0X1BCAL,315]; 153-2973
by Nexperia
0₫
Mã kho: 1532973
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Dual |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 17V |
| Minimum Breakdown Voltage | 8.1V |
| Mounting Type | Surface Mount |
| Package Type | DFN1006, SOD-882 |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 1.8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.02mm |
| Capacitance | 0.95pF |
| Automotive Standard | AEC-Q101 |
| Height | 0.47mm |
| Maximum Reverse Leakage Current | 10nA |
| Width | 0.62mm |
| Dimensions | 1.02 x 0.62 x 0.47mm |
| ESD Voltage | 15kV |
