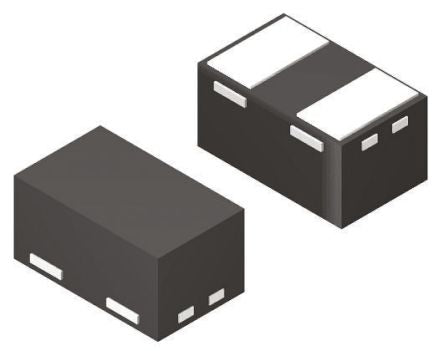

Nexperia PESD5V0S1BL,315, Bi-Directional TVS Diode, 130W, 2-Pin SOD-882 [PESD5V0S1BL,315]; 166-0270
by Nexperia
0₫
Mã kho: 1660270
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 14V |
| Minimum Breakdown Voltage | 5.5V |
| Mounting Type | Surface Mount |
| Package Type | SOD-882 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 130W |
| Maximum Peak Pulse Current | 12A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 100µA |
| Dimensions | 1.02 x 0.62 x 0.47mm |
| Width | 0.62mm |
| Height | 0.47mm |
| Length | 1.02mm |
