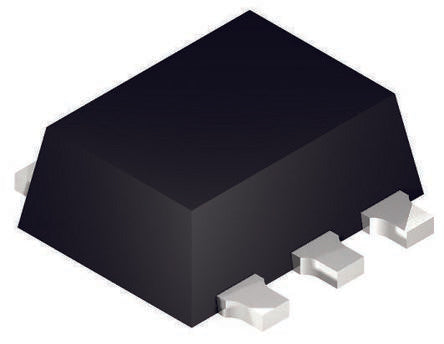

Nexperia PESD5V0L5UV,115, Quint Uni-Directional TVS Diode, 25W, 6-Pin SSMini [PESD5V0L5UV,115]; 509-469
by Nexperia
0₫
Mã kho: 509469
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Common Anode |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 12V |
Minimum Breakdown Voltage | 6.4V |
Mounting Type | Surface Mount |
Package Type | SSMini |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 6 |
Peak Pulse Power Dissipation | 25W |
Maximum Peak Pulse Current | 2.5A |
ESD Protection | Yes |
Number of Elements per Chip | 5 |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +150 °C |
Dimensions | 1.7 x 1.3 x 0.6mm |
Test Current | 1mA |
Width | 1.3mm |
Length | 1.7mm |
Maximum Reverse Leakage Current | 25nA |
Height | 0.6mm |
