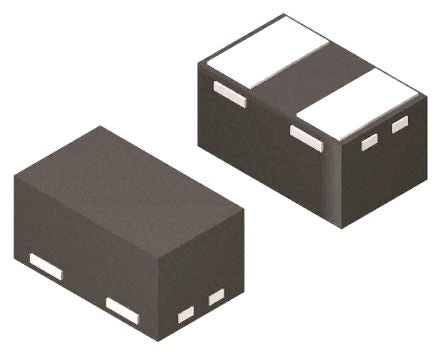

Nexperia PESD3V3U1UL,315, Uni-Directional ESD Protection Diode, 2-Pin SOD-882 [PESD3V3U1UL,315]; 165-8499
by Nexperia
0₫
Mã kho: 1658499
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Minimum Breakdown Voltage | 4.5V |
| Mounting Type | Surface Mount |
| Package Type | SOD-882 |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 2 |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 0.62mm |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 1.02 x 0.62 x 0.5mm |
| Height | 0.5mm |
| Length | 1.02mm |
