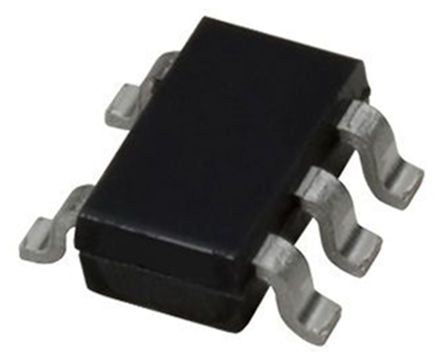

Nexperia PESD3V3L4UG,115, Quad Uni-Directional ESD Protection Diode, 30W, 5-Pin UMT [PESD3V3L4UG,115]; 509-162
by Nexperia
0₫
Mã kho: 509162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Common Anode |
| Maximum Clamping Voltage | 12V |
| Minimum Breakdown Voltage | 5.32V |
| Mounting Type | Surface Mount |
| Package Type | UMT |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 5 |
| Peak Pulse Power Dissipation | 30W |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 1.35mm |
| Length | 2.2mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Height | 1mm |
| Maximum Reverse Leakage Current | 300nA |
| Test Current | 1mA |
