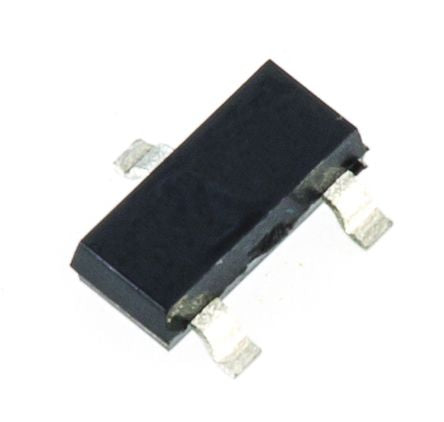

Nexperia PESD2CAN,215, Dual Bi-Directional ESD Protection Diode, 230W, 3-Pin SOT-23 [PESD2CAN,215]; 508-462
by Nexperia
0₫
Mã kho: 508462
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Series |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 41V |
| Minimum Breakdown Voltage | 26.2V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 (TO-236AB) |
| Maximum Reverse Stand-off Voltage | 24V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 230W |
| Maximum Peak Pulse Current | 5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 10nA |
| Height | 1mm |
| Test Current | 1mA |
| Dimensions | 3 x 1.4 x 1mm |
| Length | 3mm |
| Width | 1.4mm |
