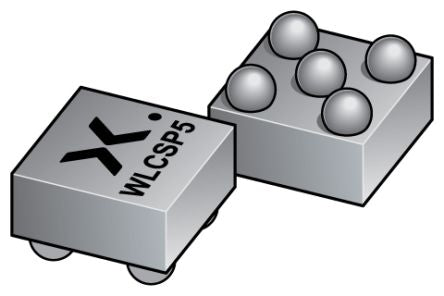

Nexperia PESD1USB3SZ, Dual ESD Protection Diode, 5-Pin WLCSP [PESD1USB3SZ]; 153-1904
by Nexperia
0₫
Mã kho: 1531904
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | WLCSP |
| Pin Count | 5 |
| Maximum Peak Pulse Current | 8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 0.82mm |
| Height | 0.38mm |
| Length | 1.22mm |
| Capacitance | 0.45pF |
| Working Voltage | 5V |
| Dimensions | 1.22 x 0.82 x 0.38mm |
| Maximum Reverse Leakage Current | 100nA |
