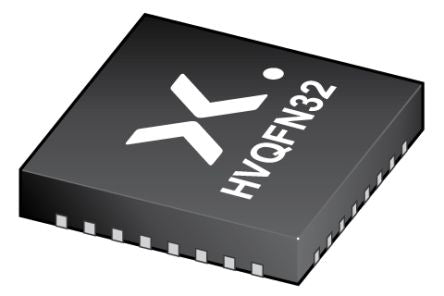

Nexperia IP4786CZ32Y, Dual Bi-Directional ESD Protection Diode, 50mW, 32-Pin HVQFN32, SOT-617 [IP4786CZ32Y]; 153-2842
by Nexperia
0₫
Mã kho: 1532842
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Dual |
| Maximum Clamping Voltage | 8V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | HVQFN32, SOT-617 |
| Pin Count | 32 |
| Peak Pulse Power Dissipation | 50mW |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Reverse Leakage Current | 1µA |
| Working Voltage | 6.5V |
| Width | 5.1mm |
| Height | 0.8mm |
| Dimensions | 5.1 x 5.1 x 0.8mm |
| Capacitance | 10pF |
| Length | 5.1mm |
