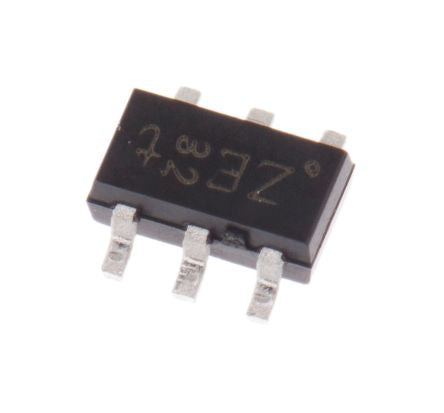

Nexperia IP4234CZ6,125, Quad Uni-Directional ESD Protection Array, 100W, 6-Pin SOT-457 (SC-74) [IP4234CZ6,125]; 179-1095
by Nexperia
0₫
Mã kho: 1791095
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SOT-457 (SC-74) |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 100W |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 3.1 x 1.7 x 1mm |
| Length | 3.1mm |
| Test Current | 1mA |
| Height | 1mm |
| Width | 1.7mm |
