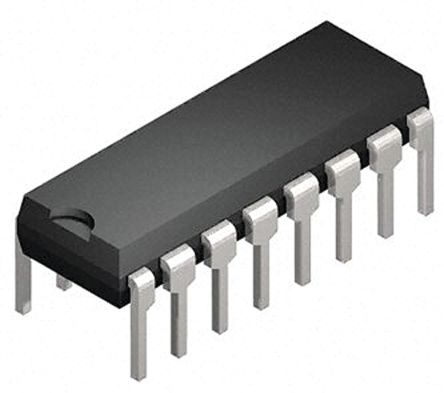

Littelfuse SP720APP, 14-Element Bi-Directional TVS Diode Array, 16-Pin PDIP [SP720APP]; 171-4298
by Littelfuse
0₫
Mã kho: 1714298
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Array |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Maximum Peak Pulse Current | ±2A |
| ESD Protection | Yes |
| Number of Elements per Chip | 14 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
| Width | 7.11mm |
| Height | 4.95mm |
| Length | 19.68mm |
| Capacitance | 3pF |
| Maximum Reverse Leakage Current | 20nA |
| Test Current | 1A |
| Dimensions | 19.68 x 7.11 x 4.95mm |
