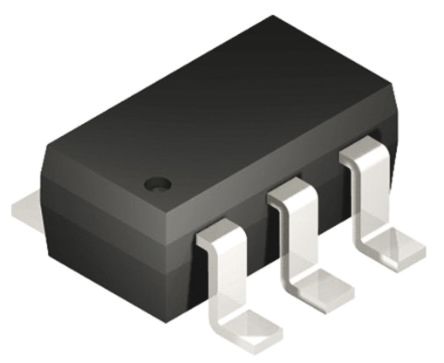

Littelfuse SP3051-04HTG, 9-Element Uni-Directional TVS Diode Array, 400W, 6-Pin SOT-23 [SP3051-04HTG]; 171-4212
by Littelfuse
0₫
Mã kho: 1714212
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 17V |
| Minimum Breakdown Voltage | 8V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Maximum Reverse Stand-off Voltage | 6V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 20A |
| ESD Protection | Yes |
| Number of Elements per Chip | 9 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 3 x 1.75 x 1.3mm |
| Maximum Reverse Leakage Current | 500nA |
| Test Current | 1mA |
| Width | 1.75mm |
| Height | 1.3mm |
| Length | 3mm |
| Capacitance | 4.2pF |
