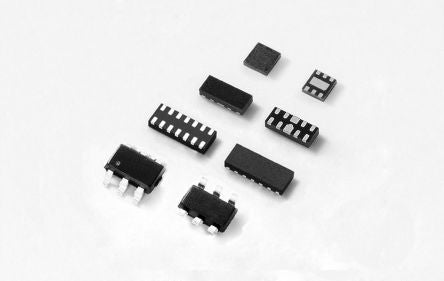

Littelfuse SP3012-06UTG, 13-Element Uni-Directional TVS Diode Array, 14-Pin μDFN [SP3012-06UTG]; 171-3883
by Littelfuse
0₫
Mã kho: 1713883
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 8.4V |
| Mounting Type | Surface Mount |
| Package Type | μDFN |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 14 |
| Maximum Peak Pulse Current | 4A |
| ESD Protection | Yes |
| Number of Elements per Chip | 13 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Capacitance | 0.65pF |
| Length | 3.6mm |
| Automotive Standard | AEC-Q101 |
| Dimensions | 3.6 x 1.45 x 0.5mm |
| Maximum Reverse Leakage Current | 1.5µA |
| Test Current | ≤1µA |
| Width | 1.45mm |
| Height | 0.5mm |
