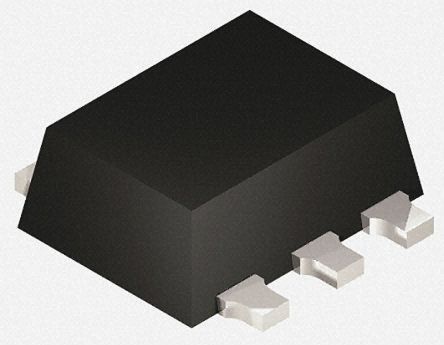

Littelfuse SP3003-02XTG, Quint Uni-Directional TVS Diode Array, 5-Pin SOT-553 [SP3003-02XTG]; 171-4256
by Littelfuse
0₫
Mã kho: 1714256
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 15V |
| Mounting Type | Surface Mount |
| Package Type | SOT-553 |
| Maximum Reverse Stand-off Voltage | 6V |
| Pin Count | 5 |
| Maximum Peak Pulse Current | 2.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 1.7 x 1.3 x 0.6mm |
| Maximum Reverse Leakage Current | 500nA |
| Length | 1.7mm |
| Capacitance | 0.95pF |
| Height | 0.6mm |
| Width | 1.3mm |
| Test Current | ≤1µA |
