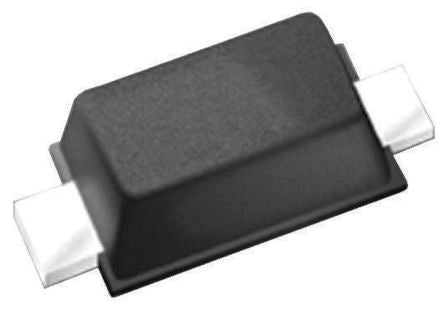

Littelfuse SP1003-01DTG, Uni-Directional TVS Diode Array, 2-Pin SOD-723 [SP1003-01DTG]; 171-4216
by Littelfuse
0₫
Mã kho: 1714216
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 12V |
| Mounting Type | Surface Mount |
| Package Type | SOD-723 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 7A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Surge Current Rating | 7A |
| Height | 0.65mm |
| Width | 0.64mm |
| Dimensions | 1.1 x 0.64 x 0.65mm |
| Maximum Reverse Leakage Current | 100nA |
| Test Current | 10mA |
| Capacitance | 30pF |
| Length | 1.1mm |
