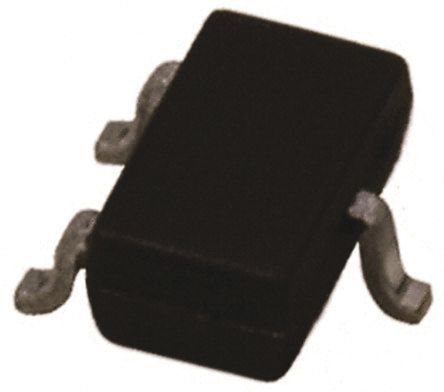

Littelfuse SP1002-01JTG, Dual Bi-Directional TVS Diode Array, 3-Pin SC-70 [SP1002-01JTG]; 171-4210
by Littelfuse
0₫
Mã kho: 1714210
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 16V |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Maximum Reverse Stand-off Voltage | 6V |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 2A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 2.25mm |
| Maximum Reverse Leakage Current | 500nA |
| Dimensions | 2.25 x 1.35 x 1mm |
| Test Current | 1mA |
| Width | 1.35mm |
| Height | 1mm |
| Capacitance | 6pF |
