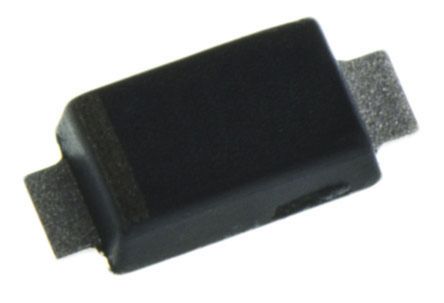

Littelfuse SMF6.0A, Uni-Directional TVS Diode, 200W, 2-Pin SOD-123FL [SMF6.0A]; 171-3869
by Littelfuse
0₫
Mã kho: 1713869
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 10.3V |
| Minimum Breakdown Voltage | 6.67V |
| Mounting Type | Surface Mount |
| Package Type | SOD-123FL |
| Maximum Reverse Stand-off Voltage | 6V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 200W |
| Maximum Peak Pulse Current | 19.4A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| ESD Voltage | 30kV |
| Height | 1mm |
| Width | 2mm |
| Test Current | 10mA |
| Maximum Reverse Leakage Current | 400µA |
| Dimensions | 2.9 x 2 x 1mm |
| Length | 2.9mm |
