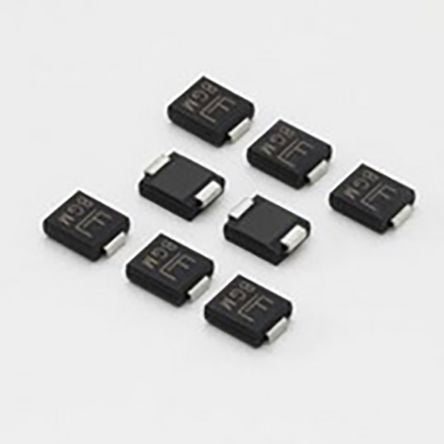

Littelfuse SMCJ300A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB [SMCJ300A]; 171-4162
by Littelfuse
0₫
Mã kho: 1714162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 486V |
| Minimum Breakdown Voltage | 335V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Maximum Reverse Stand-off Voltage | 300V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 3.1A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 6.22mm |
| Length | 7.11mm |
| ESD Voltage | 30kV |
| Dimensions | 7.11 x 6.22 x 2.41mm |
| Surge Current Rating | 200A |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
| Height | 2.41mm |
