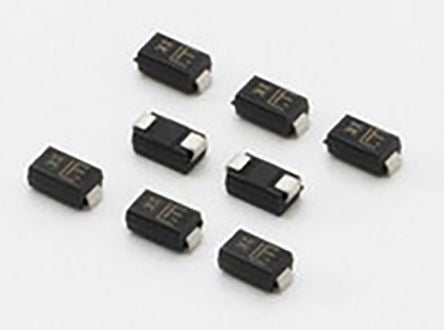

Littelfuse SMAJ6.0CA, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC [SMAJ6.0CA]; 171-4263
by Littelfuse
0₫
Mã kho: 1714263
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 10.3V |
| Minimum Breakdown Voltage | 6.67V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Maximum Reverse Stand-off Voltage | 6V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 38.8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 4.6 x 2.79 x 2.08mm |
| Surge Current Rating | 60A |
| Maximum Reverse Leakage Current | 800µA |
| Length | 4.6mm |
| Width | 2.79mm |
| Height | 2.08mm |
| ESD Voltage | 30kV |
| Test Current | 10mA |
