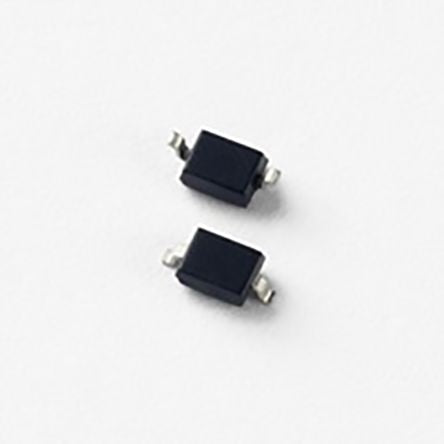

Littelfuse SD05C-01FTG, Bi-Directional TVS Diode Array, 450W, 2-Pin SOD-323 [SD05C-01FTG]; 171-9630
by Littelfuse
0₫
Mã kho: 1719630
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 14.5V |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 450W |
| Maximum Peak Pulse Current | 30A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Automotive Standard | AEC-Q101 |
| Length | 1.9mm |
| Capacitance | 200pF |
| Dimensions | 1.9 x 1.45 x 1.04mm |
| Width | 1.45mm |
| Height | 1.04mm |
| Maximum Reverse Leakage Current | 1µA |
