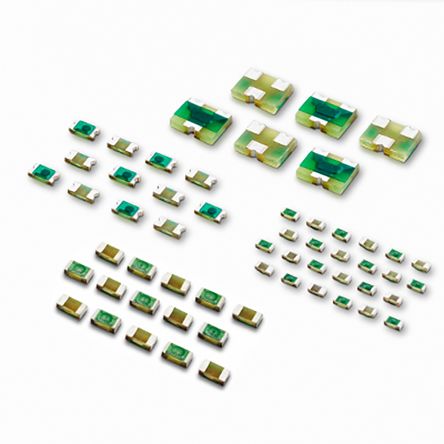

Littelfuse PGB1010603NRHF, Bi-Directional TVS Diode, 2-Pin 0603 [PGB1010603NRHF]; 171-9493
by Littelfuse
0₫
Mã kho: 1719493
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 150V |
| Mounting Type | Surface Mount |
| Package Type | 603 |
| Pin Count | 2 |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 0.36mm |
| Capacitance | 0.06pF |
| Width | 0.84mm |
| Dimensions | 1.66 x 0.84 x 0.36mm |
| Length | 1.66mm |
