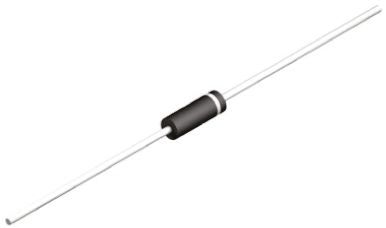

Littelfuse P6KE43CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-204AC [P6KE43CA]; 166-0298
by Littelfuse
0₫
Mã kho: 1660298
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 59.3V |
| Minimum Breakdown Voltage | 40.9V |
| Mounting Type | Through Hole |
| Package Type | DO-204AC |
| Maximum Reverse Stand-off Voltage | 36.8V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 10.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Diameter | 3.6mm |
| Length | 7.6mm |
| Dimensions | 3.6 x 7.6mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
