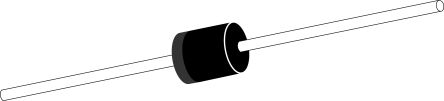

Littelfuse 5KP33A, Uni-Directional TVS Diode, 5000W, 2-Pin P600 [5KP33A]; 166-0626
by Littelfuse
0₫
Mã kho: 1660626
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 53.3V |
| Minimum Breakdown Voltage | 36.7V |
| Mounting Type | Through Hole |
| Package Type | P600 |
| Maximum Reverse Stand-off Voltage | 33V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 5000W |
| Maximum Peak Pulse Current | 95.7A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Diameter | 9.1mm |
| Maximum Reverse Leakage Current | 2µA |
| Test Current | 5mA |
| Length | 9.1mm |
| Dimensions | 9.1 x 9.1mm |
