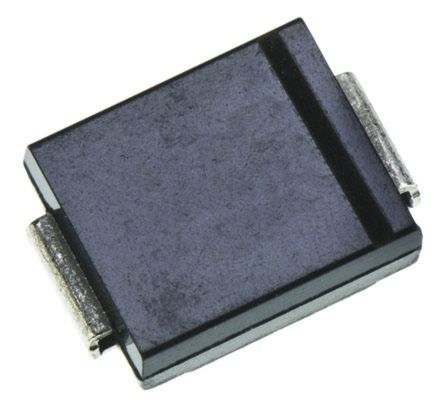

Littelfuse 5.0SMDJ30A, Uni-Directional TVS Diode, 5000W, 2-Pin DO-214AB [5.0SMDJ30A]; 171-9448
by Littelfuse
0₫
Mã kho: 1719448
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 48.4V |
| Minimum Breakdown Voltage | 33.3V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB |
| Maximum Reverse Stand-off Voltage | 30V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 5000W |
| Maximum Peak Pulse Current | 103A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 6.22mm |
| Maximum Reverse Leakage Current | 5µA |
| Test Current | 1mA |
| Length | 7.11mm |
| Height | 2.41mm |
| Dimensions | 7.11 x 6.22 x 2.41mm |
| Surge Current Rating | 300A |
