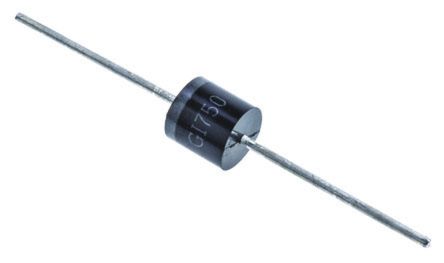

Littelfuse 30KPA33A, Uni-Directional TVS Diode, 30kW, 2-Pin P600 [30KPA33A]; 171-6738
by Littelfuse
0₫
Mã kho: 1716738
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 58.5V |
Minimum Breakdown Voltage | 36.9V |
Mounting Type | Through Hole |
Package Type | P600 |
Maximum Reverse Stand-off Voltage | 33V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 30kW |
Maximum Peak Pulse Current | 517.9A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Diameter | 9.1mm |
Length | 9.1mm |
Surge Current Rating | 400A |
Maximum Reverse Leakage Current | 5mA |
Test Current | 50mA |
Dimensions | 9.1 Dia. x 9.1mm |
