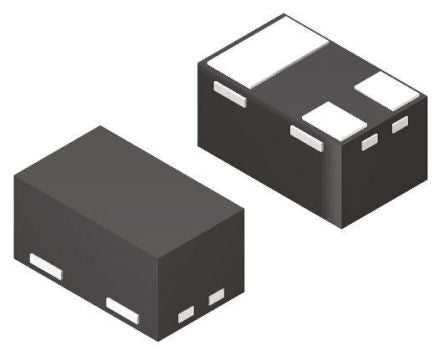

Infineon ESD5V3U2U03LRHE6327XTMA1, Dual Uni-Directional ESD Protection Diode, 3-Pin TSLP [ESD5V3U2U03LRHE6327XTMA1]; 165-6649
by Infineon
0₫
Mã kho: 1656649
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 28V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | TSLP |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1mm |
| Maximum Reverse Leakage Current | 50nA |
| Test Current | 1mA |
| Width | 0.6mm |
| Height | 0.34mm |
| Dimensions | 1 x 0.6 x 0.34mm |
