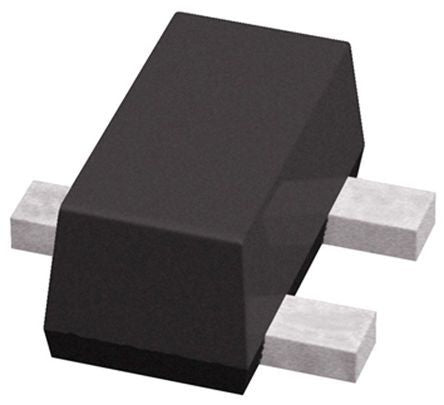

Infineon ESD5V3U2U03FH6327XTSA1, Dual Uni-Directional ESD Protection Diode, 3-Pin TSFP [ESD5V3U2U03FH6327XTSA1]; 165-8251
by Infineon
0₫
Mã kho: 1658251
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 28V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | TSFP |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| ESD Voltage | 20kV |
| Working Voltage | 5.3V |
| Length | 1.2mm |
| Capacitance | 0.6pF |
| Dimensions | 1.2 x 1.2 x 0.55mm |
| Maximum Reverse Leakage Current | 50nA |
| Test Current | 1mA |
| Height | 0.55mm |
| Width | 1.2mm |
