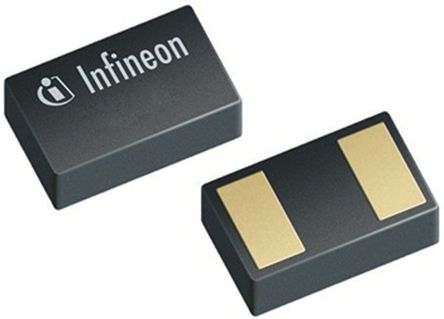

Infineon ESD114U102ELE6327XTMA1, Uni-Directional TVS Diode, 2-Pin TSLP [ESD114U102ELE6327XTMA1]; 110-7131
by Infineon
0₫
Mã kho: 1107131
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 28V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | TSLP |
| Pin Count | 2 |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 1 x 0.6 x 0.26mm |
| Width | 0.6mm |
| Height | 0.26mm |
| Length | 1mm |
| Capacitance | 0.6pF |
| Surge Current Rating | ±3A |
| Maximum Reverse Leakage Current | 100nA |
| Test Current | 1mA |
