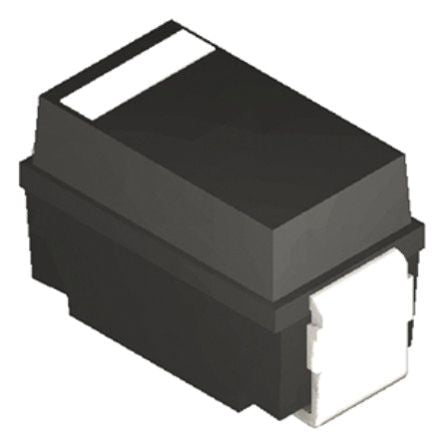

HY Electronic Corp SMAJ17A, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC [SMAJ17A]; 903-5752
0₫
Mã kho: 9035752
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 27.6V |
Minimum Breakdown Voltage | 18.9V |
Mounting Type | Surface Mount |
Package Type | DO-214AC (SMA) |
Maximum Reverse Stand-off Voltage | 17V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 400W |
Maximum Peak Pulse Current | 14.5A |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Length | 4.6mm |
Maximum Reverse Leakage Current | 5µA |
Surge Current Rating | 40A |
Dimensions | 4.6 x 2.9 x 2.42mm |
Test Current | 1mA |
Width | 2.9mm |
Height | 2.42mm |
