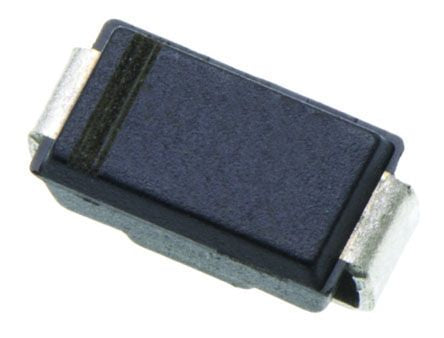

Fagor Electronica P6SMB39CA TRTB, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA [P6SMB39CA TRTB]; 146-0643
0₫
Mã kho: 1460643
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 53.9V |
| Minimum Breakdown Voltage | 37.1V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Reverse Stand-off Voltage | 33.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 11.2A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Test Current | 1mA |
| Width | 3.5mm |
| Height | 2mm |
| Length | 5.1mm |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 5.1 x 3.5 x 2mm |
| Working Voltage | 39V |
