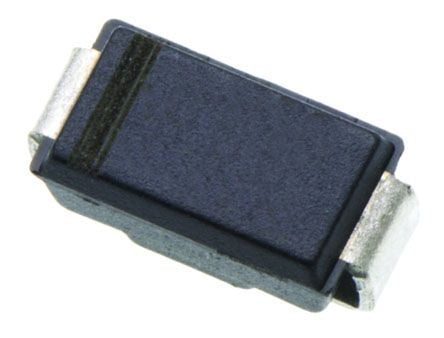

Fagor Electronica P4SMA36A, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC [P4SMA36A]; 165-5038
0₫
Mã kho: 1655038
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 49.9V |
| Minimum Breakdown Voltage | 34.2V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Maximum Reverse Stand-off Voltage | 30.8V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 8.4A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Test Current | 1mA |
| Width | 2.6mm |
| Height | 2mm |
| Working Voltage | 36V |
| Length | 5.1mm |
| Maximum Reverse Leakage Current | 1µA |
| Surge Current Rating | 40A |
| Dimensions | 5.1 x 2.6 x 2mm |
