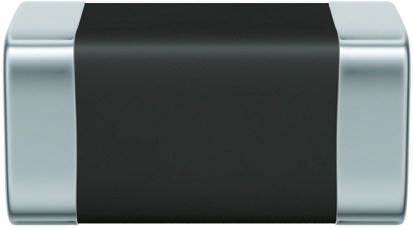

EPCOS B72590T0040M060, Bi-Directional Varistor, 2-Pin 0402 (1005M) [B72590T0040M060]; 162-0207
by EPCOS
0₫
Mã kho: 1620207
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 24V |
| Minimum Breakdown Voltage | 8V |
| Mounting Type | Surface Mount |
| Package Type | 0402 (1005M) |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 20A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 1.15mm |
| Maximum Reverse Leakage Current | 500nA |
| Test Current | 1mA |
| Width | 0.6mm |
| Height | 0.6mm |
| Dimensions | 1.15 x 0.6 x 0.6mm |
