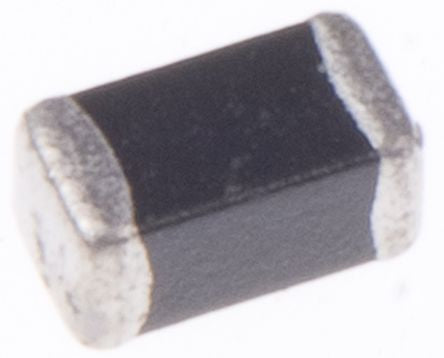

EPCOS B72500D0090A060, Bi-Directional TVS Diode, 1600W, 2-Pin SOD-523 [B72500D0090A060]; 134-9471
by EPCOS
0₫
Mã kho: 1349471
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 30V |
| Minimum Breakdown Voltage | 10V |
| Mounting Type | Surface Mount |
| Package Type | SOD-523 |
| Maximum Reverse Stand-off Voltage | 9V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1600W |
| Maximum Peak Pulse Current | 30A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 1.75mm |
| Dimensions | 1.75 x 0.9 x 0.9mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Height | 0.9mm |
| Width | 0.9mm |
