![DiodesZetex T5V0S5-7 1219567](http://nguyenxuong.com/cdn/shop/products/R1219567-01_444x352.jpg?v=1594195858)

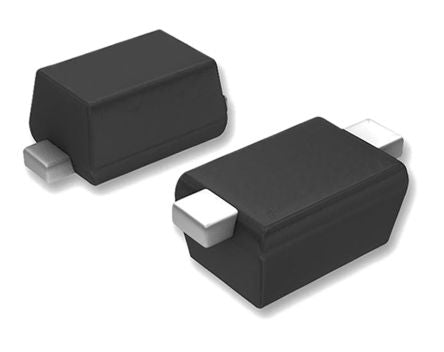

Diodes Inc T5V0S5-7, Uni-Directional ESD Protection Diode, 260W, 2-Pin SOD-523 [T5V0S5-7]; 121-9567
by DiodesZetex
0₫
Mã kho: 1219567
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Direction Type | Uni-Directional |
Diode Configuration | Single |
Maximum Clamping Voltage | 27V |
Minimum Breakdown Voltage | 6.2V |
Mounting Type | Surface Mount |
Package Type | SOD-523 |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 260W |
Maximum Peak Pulse Current | 15A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +150 °C |
Maximum Reverse Leakage Current | 50nA |
Dimensions | 1.3 x 0.9 x 0.65mm |
Width | 0.9mm |
Test Current | 1mA |
Length | 1.3mm |
Height | 0.65mm |
