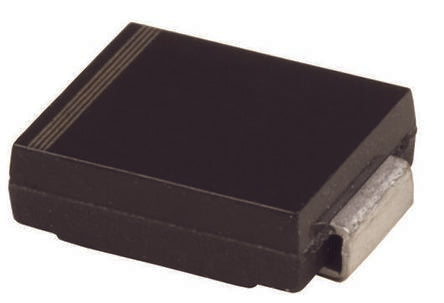

Diodes Inc SMCJ30CA-13-F, Bi-Directional TVS Diode, 1500W, 2-Pin SMC [SMCJ30CA-13-F]; 751-5091
by DiodesZetex
0₫
Mã kho: 7515091
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Bi-Directional |
Maximum Clamping Voltage | 48.4V |
Minimum Breakdown Voltage | 33.3V |
Mounting Type | Surface Mount |
Package Type | SMC |
Maximum Reverse Stand-off Voltage | 30V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 1500W |
Maximum Peak Pulse Current | 31A |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Dimensions | 7.11 x 6.22 x 2.62mm |
Test Current | 1mA |
Width | 6.22mm |
Height | 2.62mm |
Length | 7.11mm |
Maximum Reverse Leakage Current | 5µA |
