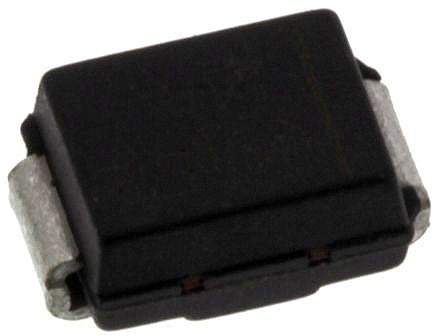

![DiodesZetex SMBJ7.0A-13-F 8855643](http://nguyenxuong.com/cdn/shop/products/R8855643-01_2c8336eb-4203-446c-a65d-9324efc9fa20_444x336.jpg?v=1594417541)
Diodes Inc SMBJ7.0A-13-F, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA [SMBJ7.0A-13-F]; 885-5643
by DiodesZetex
0₫
Mã kho: 8855643
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 12V |
Minimum Breakdown Voltage | 7.78V |
Mounting Type | Surface Mount |
Package Type | DO-214AA (SMB) |
Maximum Reverse Stand-off Voltage | 7V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 600W |
Maximum Peak Pulse Current | 50A |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Height | 2.42mm |
Dimensions | 4.57 x 3.94 x 2.42mm |
Length | 4.57mm |
Surge Current Rating | 100A |
Width | 3.94mm |
Test Current | 10mA |
Maximum Reverse Leakage Current | 200µA |
