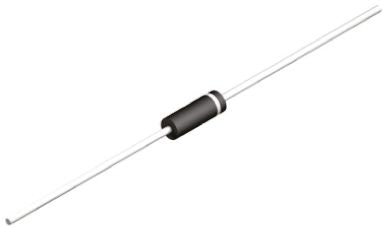

Diodes Inc P6KE7V5A-T, Uni-Directional TVS Diode, 600W, 2-Pin DO-15 [P6KE7V5A-T]; 751-4610
by DiodesZetex
0₫
Mã kho: 7514610
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 11.3V |
Minimum Breakdown Voltage | 7.13V |
Mounting Type | Through Hole |
Package Type | DO-15 |
Maximum Reverse Stand-off Voltage | 6.4V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 600W |
Maximum Peak Pulse Current | 53A |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Maximum Reverse Leakage Current | 500µA |
Diameter | 3.6mm |
Test Current | 10mA |
Length | 7.62mm |
Dimensions | 3.6 (Dia.) x 7.62mm |
