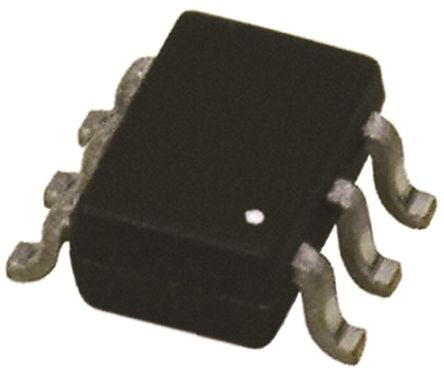

Diodes Inc DT2636-04S-7, Quad Uni-Directional TVS Diode Array, 60W, 6-Pin SOT-363 (SC-88) [DT2636-04S-7]; 121-9639
by DiodesZetex
0₫
Mã kho: 1219639
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 9V |
| Minimum Breakdown Voltage | 7V |
| Mounting Type | Surface Mount |
| Package Type | SOT-363 (SC-88) |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 60W |
| Maximum Peak Pulse Current | 6.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Reverse Leakage Current | 10nA |
| Width | 1.35mm |
| Length | 2.2mm |
| Height | 1mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Test Current | 1mA |
