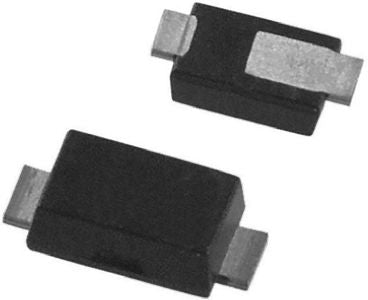

Diodes Inc DFLT15A-7, Uni-Directional TVS Diode, 1125W, 2-Pin PowerDI 123 [DFLT15A-7]; 122-0191
by DiodesZetex
0₫
Mã kho: 1220191
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 24.4V |
| Minimum Breakdown Voltage | 16.7V |
| Mounting Type | Surface Mount |
| Package Type | PowerDI 123 |
| Maximum Reverse Stand-off Voltage | 15V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1125W |
| Maximum Peak Pulse Current | 9.22A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
| Dimensions | 3 x 1.93 x 1mm |
| Test Current | 1mA |
| Width | 1.93mm |
| Height | 1mm |
| Maximum Reverse Leakage Current | 1µA |
