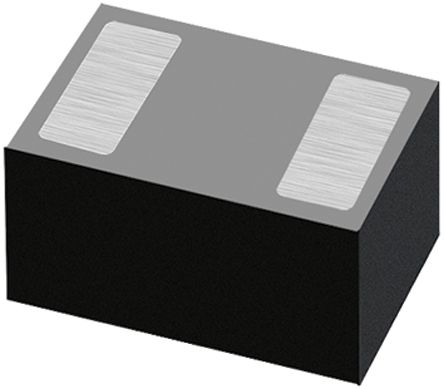

Diodes Inc D5V0P1B2LP-7B, Dual Bi-Directional TVS Diode, 0.25W, 2-Pin X1-DFN1006 [D5V0P1B2LP-7B]; 165-8372
by DiodesZetex
0₫
Mã kho: 1658372
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Dual |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 13V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | X1-DFN1006 |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 0.25W |
| Maximum Peak Pulse Current | 4A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 1.07 x 0.67 x 0.48mm |
| Capacitance | 10pF |
| Maximum Reverse Leakage Current | 100nA |
| Test Current | 1mA |
| Width | 0.67mm |
| Length | 1.07mm |
| Height | 0.48mm |
