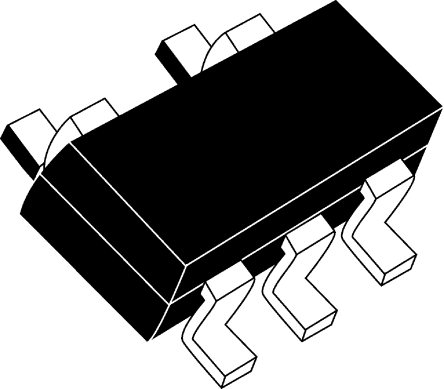

Diodes Inc D5V0L4B5SO-7, Octal Bi-Directional TVS Diode Array, 84W, 5-Pin SOT-25 [D5V0L4B5SO-7]; 169-0746
by DiodesZetex
0₫
Mã kho: 1690746
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Direction Type | Bi-Directional |
Diode Configuration | Array |
Maximum Clamping Voltage | 14V |
Minimum Breakdown Voltage | 6V |
Mounting Type | Surface Mount |
Package Type | SOT-25 |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 5 |
Peak Pulse Power Dissipation | 84W |
Maximum Peak Pulse Current | 6A |
ESD Protection | Yes |
Number of Elements per Chip | 8 |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +150 °C |
Length | 3.1mm |
Test Current | 1mA |
Dimensions | 3.1 x 1.7 x 1.3mm |
Maximum Reverse Leakage Current | 100nA |
Height | 1.3mm |
Width | 1.7mm |
Capacitance | 20pF |
