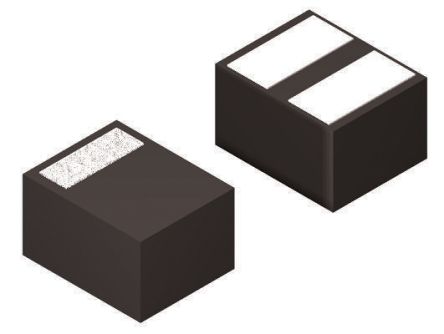

Diodes Inc D26V0H1U2LP20-7, Uni-Directional TVS Diode, 300W, 2-Pin U-DFN2020 [D26V0H1U2LP20-7]; 921-0966
by DiodesZetex
0₫
Mã kho: 9210966
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 40V |
| Minimum Breakdown Voltage | 28V |
| Mounting Type | Surface Mount |
| Package Type | U-DFN2020 |
| Maximum Reverse Stand-off Voltage | 26V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 300W |
| Maximum Peak Pulse Current | 9.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 2.1 x 2.1 x 0.6mm |
| Test Current | 1mA |
| Width | 2.1mm |
| Height | 0.6mm |
| Length | 2.1mm |
| Capacitance | 630pF |
| Maximum Reverse Leakage Current | 100nA |
