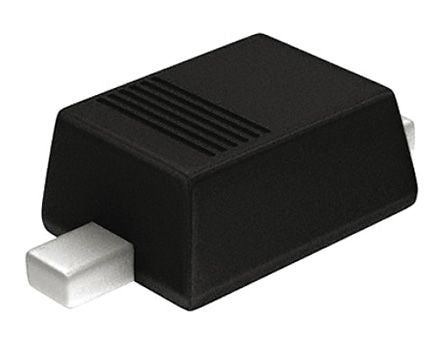

Diodes Inc D12V0M1U2S9-7, Uni-Directional TVS Diode, 100W, 2-Pin SOD-923 [D12V0M1U2S9-7]; 165-8370
by DiodesZetex
0₫
Mã kho: 1658370
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 25V |
| Minimum Breakdown Voltage | 13V |
| Mounting Type | Surface Mount |
| Package Type | SOD-923 |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 100W |
| Maximum Peak Pulse Current | 4A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Capacitance | 26pF |
| Length | 0.85mm |
| Dimensions | 0.85 x 0.65 x 0.4mm |
| Maximum Reverse Leakage Current | 100nA |
| Test Current | 1mA |
| Height | 0.4mm |
| Width | 0.65mm |
