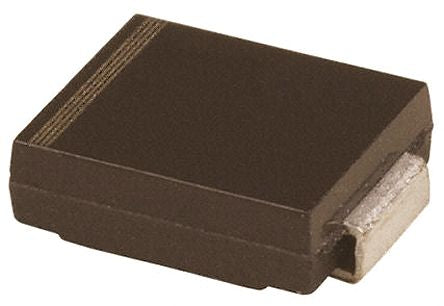

Diodes Inc 3.0SMCJ30A-13, Uni-Directional TVS Diode, 3000W, 2-Pin SMC [3.0SMCJ30A-13]; 165-8808
by DiodesZetex
0₫
Mã kho: 1658808
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 48.4V |
| Minimum Breakdown Voltage | 33.3V |
| Mounting Type | Surface Mount |
| Package Type | SMC |
| Maximum Reverse Stand-off Voltage | 30V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 3000W |
| Maximum Peak Pulse Current | 62A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Maximum Reverse Leakage Current | 5µA |
| Width | 6.22mm |
| Height | 2.42mm |
| Dimensions | 7.11 x 6.22 x 2.42mm |
| Length | 7.11mm |
| Test Current | 1mA |
