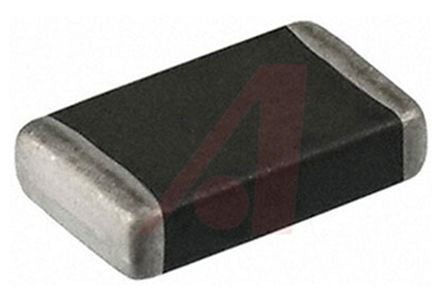

COMCHIP TECHNOLOGY CPDU5V0, Dual Bi-Directional ESD Protection Diode, 2-Pin 0603 (1608M) [CPDU5V0]; 906-6901
0₫
Mã kho: 9066901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 15V |
| Minimum Breakdown Voltage | 5.1V |
| Mounting Type | Surface Mount |
| Package Type | 0603 (1608M) |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Maximum Operating Temperature | +125 °C |
| Maximum Reverse Leakage Current | 2µA |
| Length | 1.8mm |
| ESD Voltage | 16kV |
| Dimensions | 1.8 x 1 x 0.85mm |
| Test Current | 1mA |
| Height | 0.85mm |
| Width | 1mm |
| Capacitance | 20pF |
