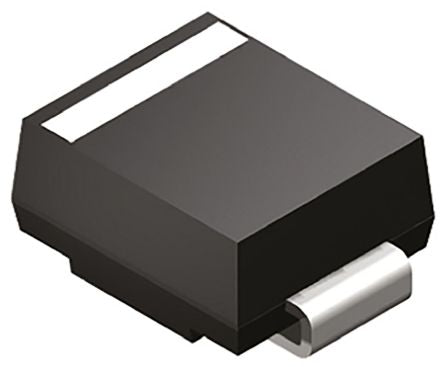

Bourns TISP4011H1BJR-S, Bi-Directional Over-voltage Protector, 2-Pin DO214AA [TISP4011H1BJR-S]; 126-1773
by Bourns
0₫
Mã kho: 1261773
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage | 9V |
| Mounting Type | Surface Mount |
| Package Type | DO214AA |
| Maximum Reverse Stand-off Voltage | ±5.25V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 100A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Capacitance | 110pF |
| Length | 4.57mm |
| Test Current | ±5A |
| Dimensions | 4.57 x 3.94 x 2.23mm |
| Width | 3.94mm |
| Height | 2.23mm |
| Maximum Reverse Leakage Current | 200µA |
