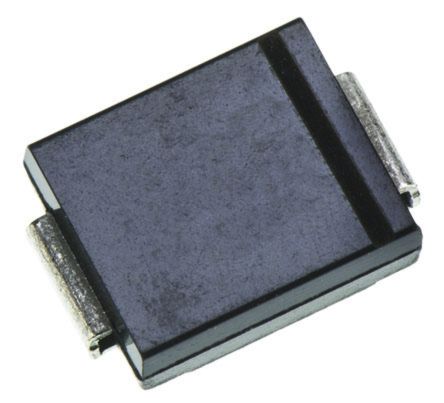

Bourns SMLJ33A-Q, Uni-Directional TVS Diode, 3000W, 2-Pin DO-214AB [SMLJ33A-Q]; 172-3283
by Bourns
0₫
Mã kho: 1723283
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 53.3V |
| Minimum Breakdown Voltage | 36.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Maximum Reverse Stand-off Voltage | 33V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 3000W |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 2µA |
| Surge Current Rating | 56.2 A, 300 A |
| Dimensions | 7.11 x 6.22 x 2.41mm |
| Length | 7.11mm |
| Automotive Standard | AEC-Q101 |
| Height | 2.41mm |
| Width | 6.22mm |
