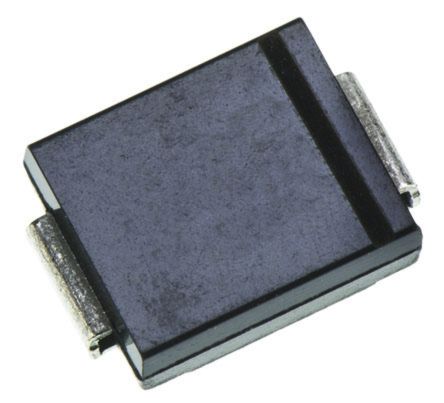

![Bourns SMLJ26CA-Q 1723229](http://nguyenxuong.com/cdn/shop/products/R1723229-01_444x403.jpg?v=1594332102)
Bourns SMLJ26CA-Q, Bi-Directional TVS Diode, 3000W, 2-Pin DO-214AB [SMLJ26CA-Q]; 172-3229
by Bourns
0₫
Mã kho: 1723229
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Bi-Directional |
Maximum Clamping Voltage | 42.1V |
Minimum Breakdown Voltage | 28.9V |
Mounting Type | Surface Mount |
Package Type | DO-214AB (SMC) |
Maximum Reverse Stand-off Voltage | 26V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 3000W |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Automotive Standard | AEC-Q101 |
Length | 7.11mm |
Dimensions | 7.11 x 6.22 x 2.41mm |
Surge Current Rating | 71.2 A, 300 A |
Maximum Reverse Leakage Current | 2µA |
Test Current | 1mA |
Height | 2.41mm |
Width | 6.22mm |
