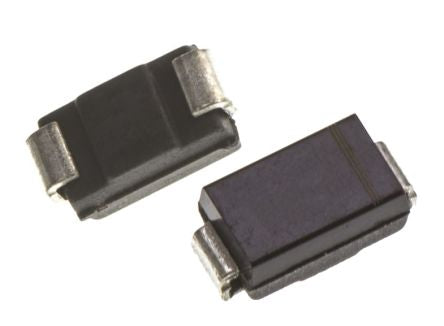

![Bourns SMA6J18A 1952373](http://nguyenxuong.com/cdn/shop/products/P1952373-01_444x326.jpg?v=1594144990)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Direction Type | Uni-Directional |
Diode Configuration | Single |
Minimum Breakdown Voltage | 20V |
Mounting Type | Surface Mount |
Package Type | DO-214AC (SMA) |
Maximum Reverse Stand-off Voltage | 43V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 600W |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Dimensions | 4.5 x 2.79 x 2.08mm |
Surge Current Rating | 20.6A |
Maximum Reverse Leakage Current | 1µA |
Test Current | 1mA |
Width | 2.79mm |
Length | 4.5mm |
Height | 2.08mm |
