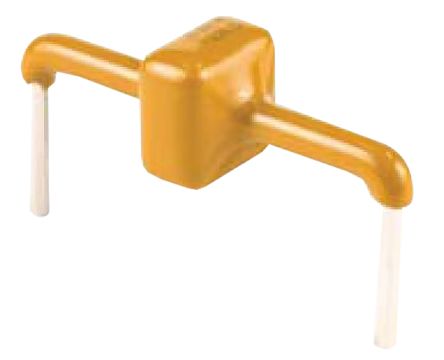

Bourns PTVS3-015C-TH, Bi-Directional TVS Diode, 2-Pin PTVS3 [PTVS3-015C-TH]; 126-1763
by Bourns
0₫
Mã kho: 1261763
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 28V |
| Minimum Breakdown Voltage | 16V |
| Mounting Type | Through Hole |
| Package Type | PTVS3 |
| Maximum Reverse Stand-off Voltage | 15V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 3kA |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Surge Current Rating | 3kA |
| Maximum Reverse Leakage Current | 10µA |
| Test Current | 10mA |
| Dimensions | 4 x 9.3 x 10.8mm |
| Width | 9.3mm |
| Height | 10.8mm |
| Length | 4mm |
| Capacitance | 7.5nF |
