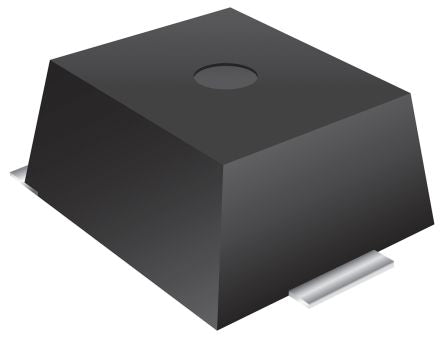

Bourns PTVS10-086C-M, Bi-Directional TVS Diode, 2-Pin SMD [PTVS10-086C-M]; 183-1555
by Bourns
0₫
Mã kho: 1831555
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 157V |
| Minimum Breakdown Voltage | 96V |
| Mounting Type | Surface Mount |
| Package Type | SMD |
| Maximum Reverse Stand-off Voltage | 86V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 10kA |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Capacitance | 5nF |
| Length | 16.05mm |
| RMS Voltage | 1Vrms |
| Dimensions | 16.05 x 14.6 x 7.24mm |
| Width | 14.6mm |
| Surge Current Rating | 10kA |
| Height | 7.24mm |
